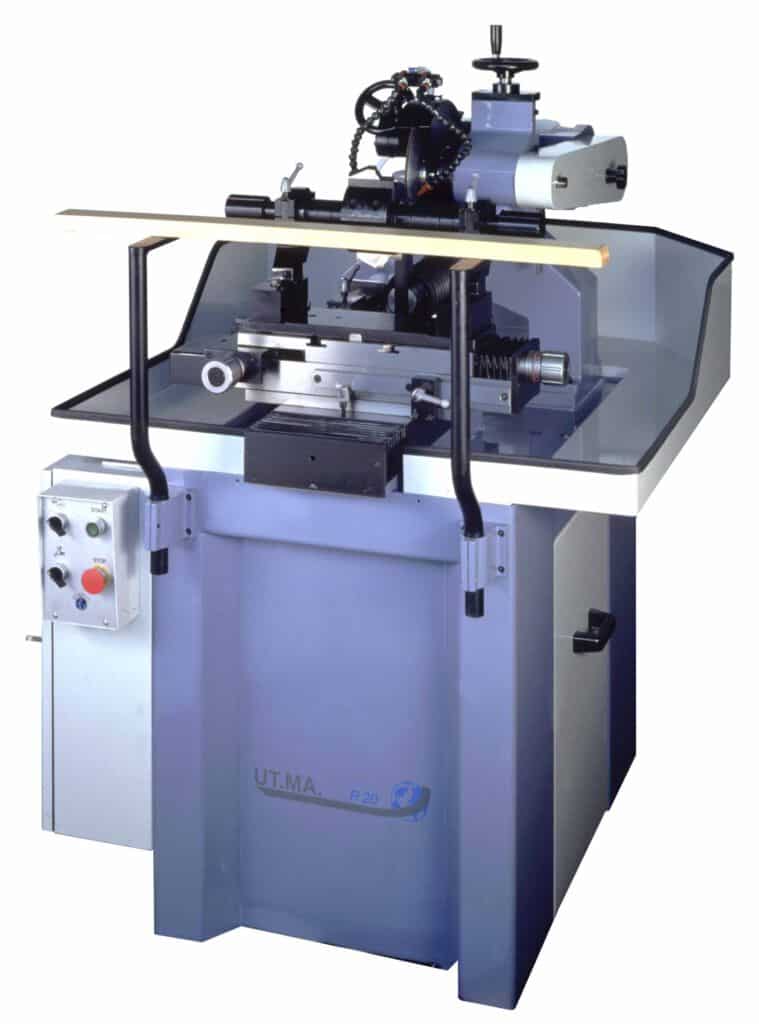

Manual profiling machine P20

The P20 manual profiling machine is the ideal machine for the construction or profiling of shaped cutters in steel and brazed welding and cutter heads with HSS grooved knives used on molding machines.

Description

	P20
Motor	1,5 kW
Motor revolutions	2400 / 2800 p/min
Cross table	P/20 250 mm (P/30 350 mm)
Max. diameter of tool	300 mm
Max. diameter of wheel	250 mm
Grinding wheel bore	40 mm
Side clearance	0 – 25^o
Weight	430 kg
Dimensions	1100 x 1300 x 1600 mm

Instructional materials

Product description Download PDF
