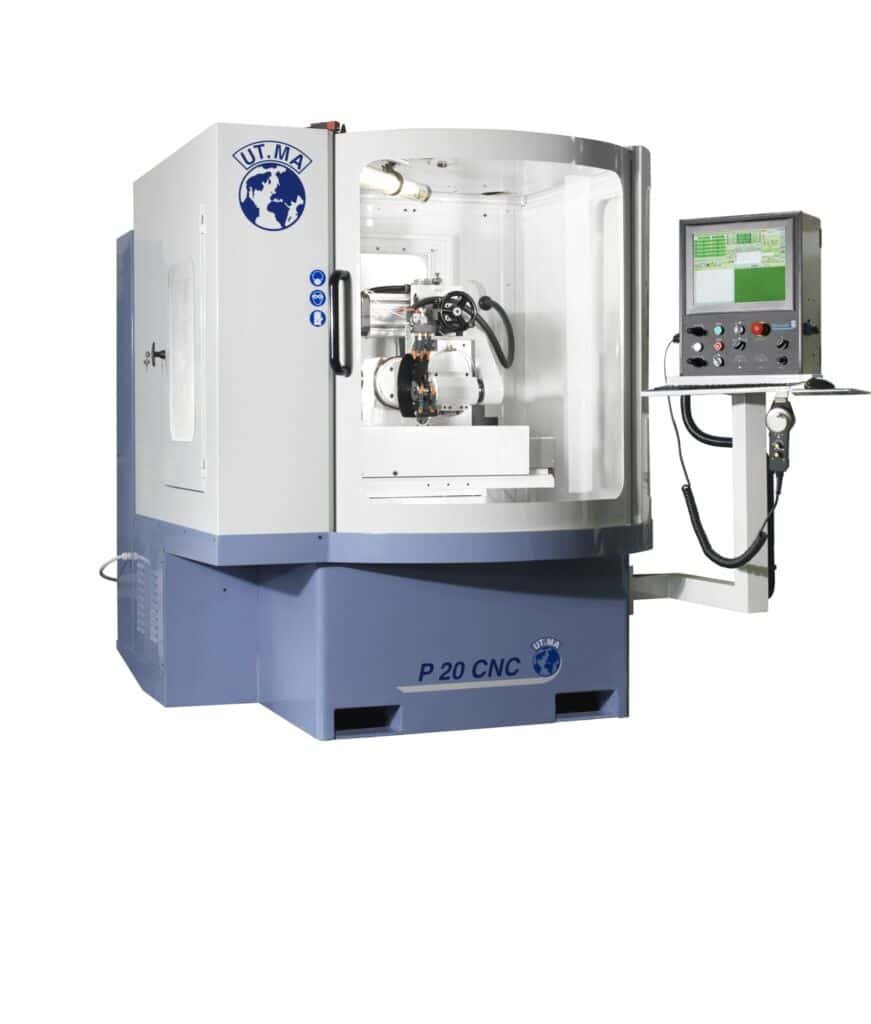

Automatic profiling machine P20 CNC
The P20 CNC automatic profiling machine has been designed and built to optimize costs and production times, both for the profiling of single special tools and for the machining of similar tools in series.
The P20 CNC can build or resharpen profiled tools such as:
Brazed cutters in HM and HSS
Knife holder heads with grooved knives in HSS
Interchangeable knives in HM
The P20 CNC can be equipped with the following accessories:

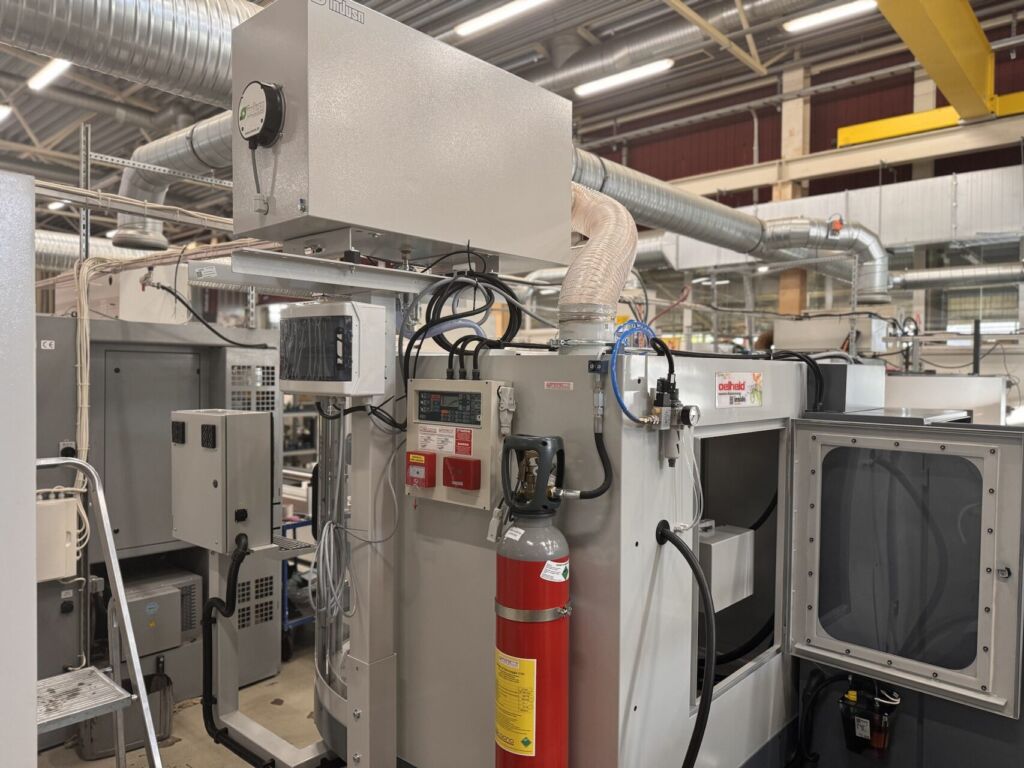

Suction system (centrifugal or electrostatic)

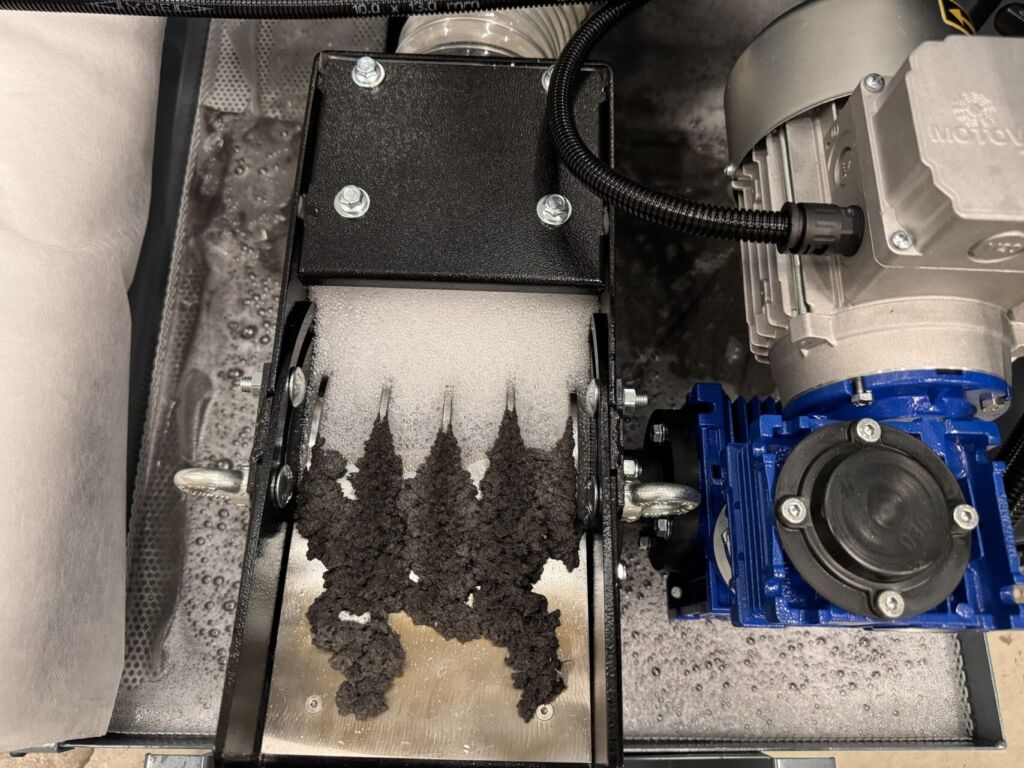

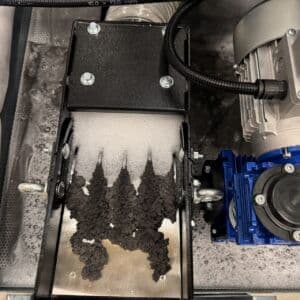

Magnetic separator for coolant filtration
Refrigerant tank with automatic paper filter
Fire extinguishing system
Description
| P20 CNC | |
|---|---|
| Table movement – X axis | 350 mm |
| Wheel movement – Y axis | 200 mm |
| Axes movement through AC digital servo motors | Z nm 11,7 A, X, Y nm 5,8 |
| Workhead | ISO 50 |
| Maximum tool diameter | 305 mm |
| Side clearance degree | +/- 0-25o |
| Grinding motor | 8.6 kW |
| Wheel diameter | 200 / 230 / 250 mm |
| Weight | 3600 kg |
| Dimensions | 2000 x 2500 x 2000(h) mm |
