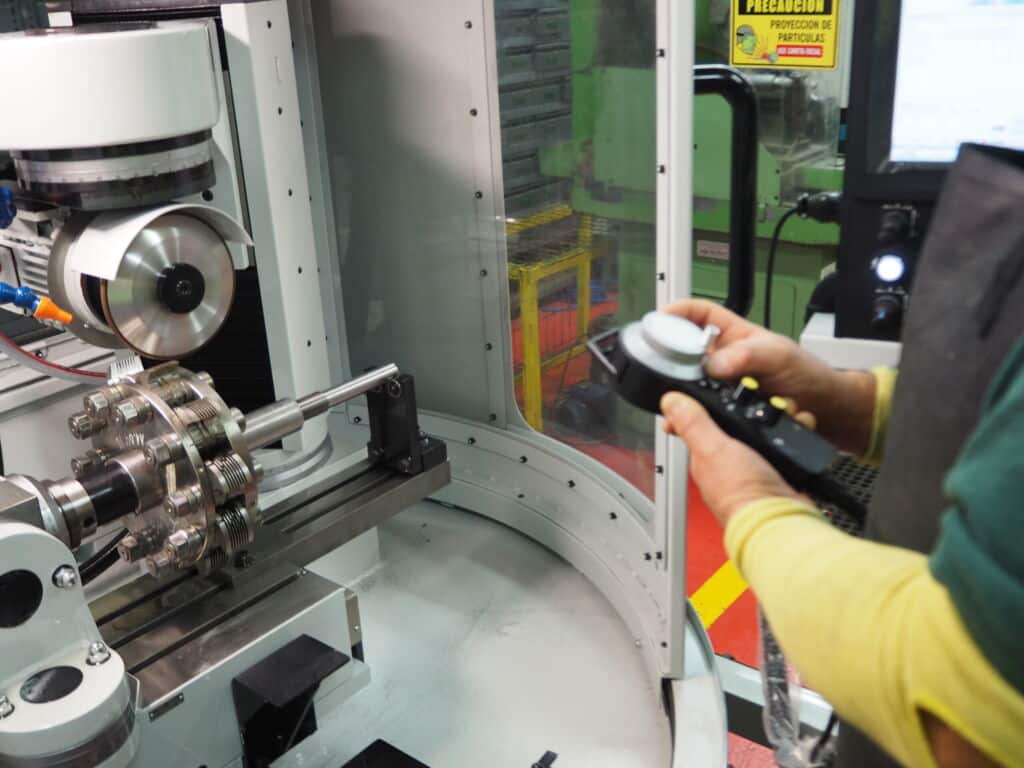

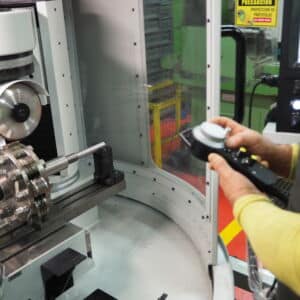

Automatic tool grinder LC25 E CNC
The simple and cost-effective solution for the sharpening of linear cutters, bits and tools used in the woodworking or machining sectors.
The machine is equipped with a guided menu for easy programming and four controlled axes in order to be able to sharpen a wide range of tools.
The LC25E CNC can be equipped with the following accessories:
- Extraction system (centrifugal or electrostatic)
- Coolant tank with automatic paper filter

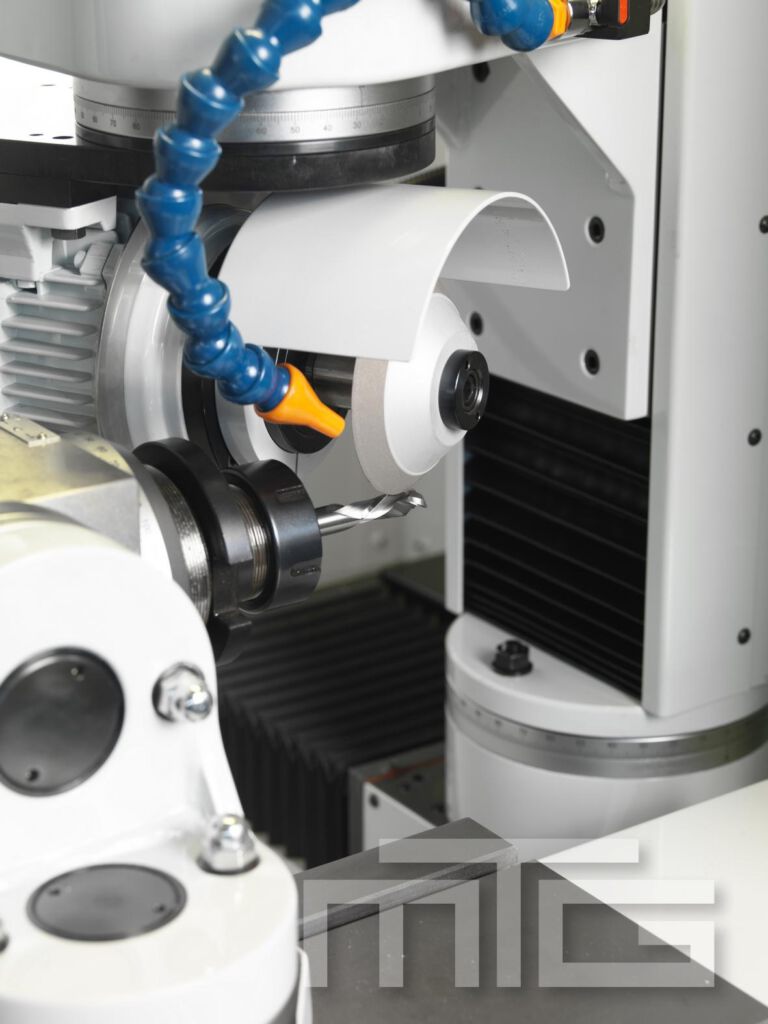

- Probe technology to teach-in the helix
Description
| LC25 E CNC | |
|---|---|
| Table movement – X axis | 260 mm |
| Wheel movement – Y axis | 260 mm |
| Column movement – Z axis | 250 mm |
| Axes movements A – X – (Y) – (Z) through stepper servo motors | 4,5 nm |
| Work head | MT 4 |
| Maximum swing over centres | 250 mm |
| Horizontal swivel of grinding spindle | 360o |
| Grinding motor | 1,1 kW |
| Grinding spindle speed | 0 – 6000 |
| Maximum wheel diameter | 175 mm |
| Weight | 1000 kg |
| Dimensions | 170 x 170 x 190(h) cm |
