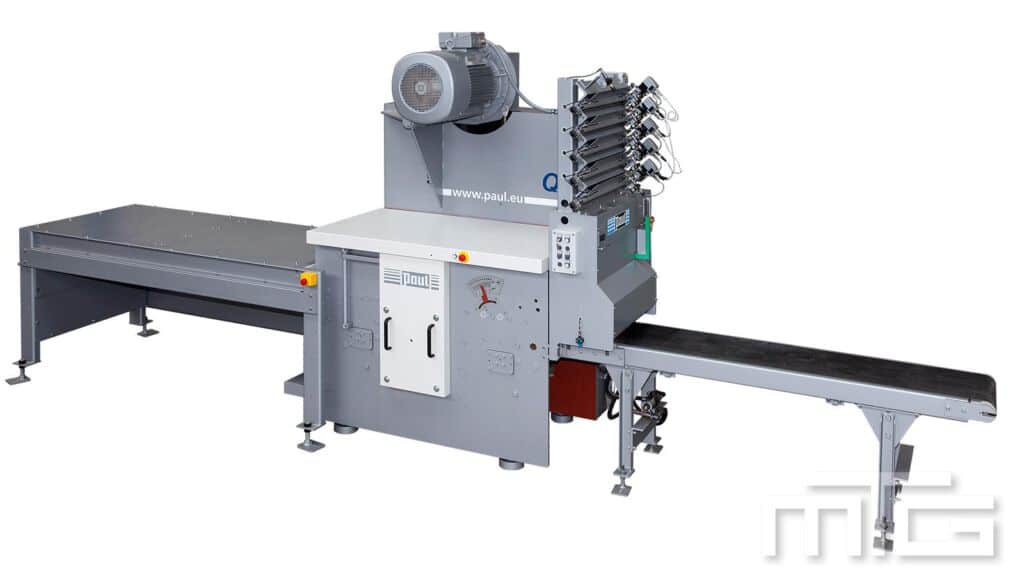

Circular Ripsaw Q-805
For the manual ripping of boards.
- Perfectly suitable for dried hardwoods
- Combination of feed rollers and chain bed for most accurate workpiece guidance
- Saw shaft rotating against the feed or with the feed depending on requirements
- Convenient MaxiRip CNC control
- Cutting edges of glue-line quality
- Compact design
Description
| Q-805 | |
|---|---|
| Cutting height | 15 – 50 mm |
| Opening width max. | 750 mm |
| Min. workpiece length | 500 mm |
| Driving power | 15 – 90 kW |
| Max. feed speed1) | 83 m/min |
| Max. number of powered feed rollers | 18 |
| Speed of saw shaft | 4500 U/min |
| Sound pressure level2) at no load/in operation | 72/77 dB(A) |
| Sound power level3) at no load/in operation | 93/96 dB(A) |
| Max. saw blade diameter | 250 mm |
| Max. number of movable saw bushes | 4 |
| Dimension | |
| L | 1700 mm |
| W4) | 1700 mm |
| H (with motor max.) | 1320 (2550) mm |
| Working height | 800 mm |
| Weight5) | 3000 kg |
1) with manual workpiece removal max. 35 m/min
2) at the workplace, depending on tool and cutting parameters
3) depending on tool and cutting parameters
4) with moving saw blades
5) without motor or anti-kickback device, inc. four movable saw bushes
