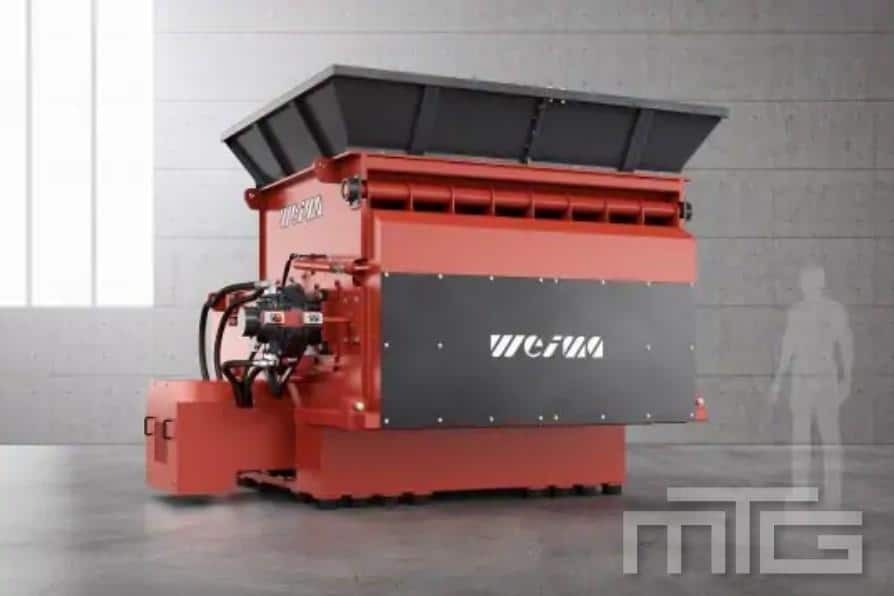

SHREDDER S7.20 lift-up
The WEIMA S7 shredders are for the most extreme of applications. This machine line boasts stability, functionality, consistent throughput, and availability. A variety of sizes and options guarantees customer-specific solutions for almost all applications. This line of machines boasts extremely robust construction and almost endless capabilities for the shredding of scrap. There are over 80 optional features, making this a customized shredding solution for almost any application.
Description
| S5.20 lift-up | S5.15 lift-up | S5.25 lift-up | S7.15 lift-up | S7.20 lift-up | S7.25 lift-up | S7.30 lift-up | |
|---|---|---|---|---|---|---|---|
| Rotor Diameter (mm) | 500 | 500 | 500 | 700 | 700 | 700 | 700 |
| Rotor length (mm) | 2,000 | 1,500 | 2,500 | 1,500 | 2,000 | 2,500 | 3,000 |
| Rotor Speed (rpm) | 80 – 120 | ||||||
| Power (kW) | 90 – 200 | 75 – 200 | 110 – 200 | 75 – 250 | 90 – 250 | 110 – 250 | |
| Rotor Knives | 223 | 164 | 280 | 164 | 220 | 246 | 330 |
| Available knife sizes (mm) | 40 / 60 | 40 / 60 | 40 / 60 | 40 / 60 / 80 / 100 | 40 / 60 / 80 / 100 | 40 / 60 / 80 / 100 | 40 / 60 / 80 / 100 |
| Fraction size (mm) | 15 – 100 | ||||||
| Infeed opening (mm) | 2,000 x 1,880 | 1,500 x 1,880 | 2,500 x 1,880 | 1,500 x 1,930 | 2,000 x 1,930 | 2,500 x 1,930 | 3,000 x 1,930 |
| Length (mm) | 3,800 | 4,130 | 3,750 | 4,230 | 3,865 | 3,981 | |
| Width (mm) | 3,500 | 3,050 | 3,000 | 3,000 | 3,750 | 3,750 | 4,285 |
| Height (mm) | 2,815 | 2,815 | 2,815 | 2,915 | 2,950 | 2,950 | 3,015 |
| Weight (approx. kg) | 18,500 | 15,000 | 24,500 | 17,500 | 21,000 | 30,000 | 34,000 |
| Wall thickness (mm) | 40 | ||||||
