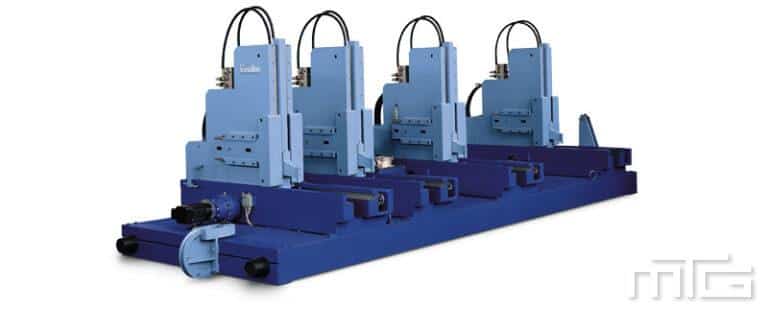

Log Carrier CGD for exotic wood
- Log clamping through hydraulic cylinders having 2 selectable closing pressures.
- Double hydraulic pad to select hooks projection in 4 positions.
- Headblocks displacement is powered by a brushless motor.
- Positionings and working cycles are achieved by an electronic programmable equipment, with possibility of optimisation.
- Hydraulic log turning device with independent arms mounted on each headblock, with inclination up to 90°.
- Centralized lubrication.
Description
| CGD |
 |
|
|---|---|---|
| Max. log diameter | 1.300 mm | |
| Hook ejection from pads |
20-70-120-170 mm | |
| Speed of headblock displacement | 300 mm/s | |
| Speed of hydrostatic feed (IIC Mod.) |
0 ÷ 120 m/min | |
| Tractive force of hydrostatic feed (IIC Mod.) |
20.050 N | |
| Weight |
15.000 Kg |
