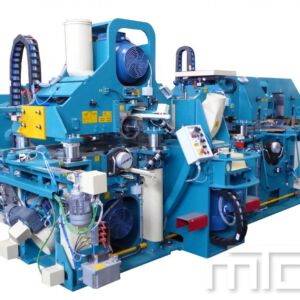

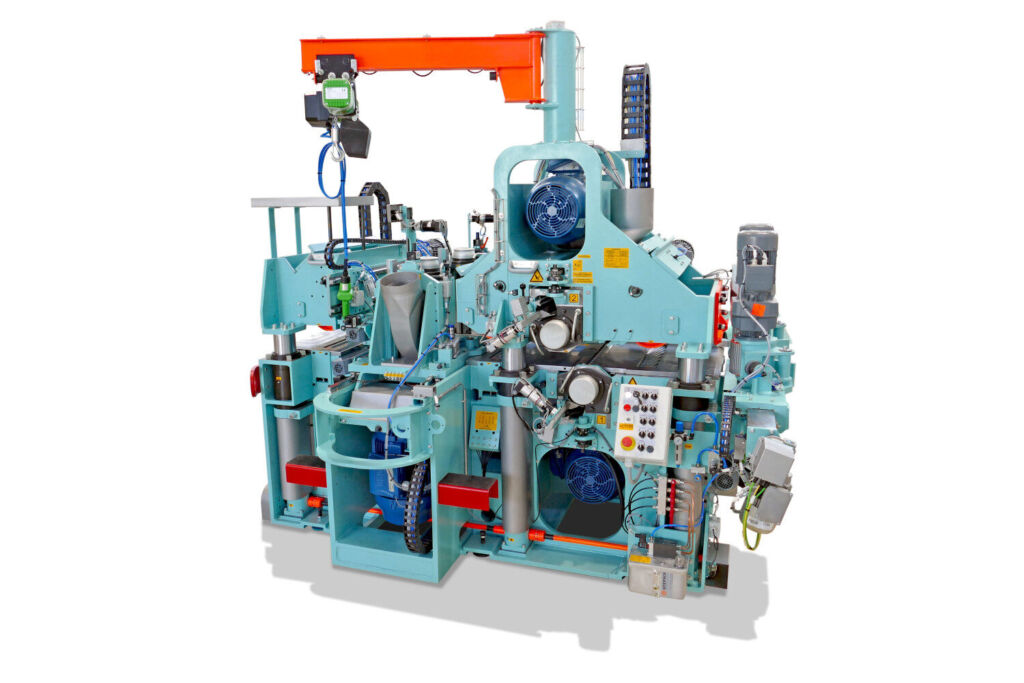

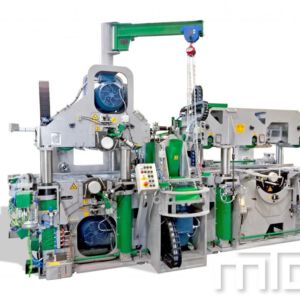

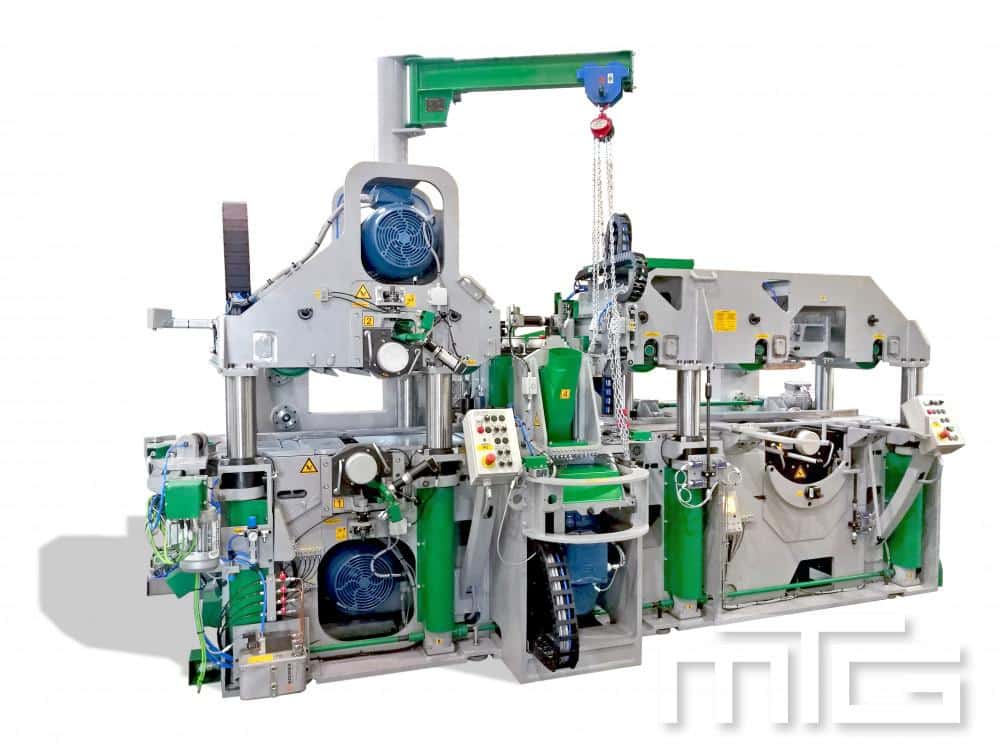

Planer Europlan 300 / 400 / 600

Ledinek Engineering d.o.o. planer Europlan is used for planing and splitting dry and wet lumber. Planing lamellas and final planing of glued laminated timber and glued beams.

MTG Eesti OÜ’s Slovenian partner Ledinek d.o.o. produces the Europan planer in different sizes depending on the purpose of the machine. The feed speed of the planer also varies depending on the field of use of the machine.

What makes the Europan planer interesting is that the machine can be ordered with both the classic right-hand feed and the left-hand feed. This makes it easier for Ledinek to design space-saving solutions to fit the machine into an existing building.

When ordering a Europlan planer, we recommend purchasing the machine with Ledinek’s own planer infeed feed unit.
By final planing of glued beams, we recommend ordering the machine with corner milling cutters (chamfering units).

Description

EUROPLAN
Working width [mm]	50 – 1.300	50 – 300
Matrial thickness [mm]	19 – 300	15 – 120 (200)
Material min lenght [mm]	1.800	1.800
Feed speed [m/min]	60	120

Drive motors	4V+4F	4V
Bottom spindle (up to)	18,5 kW	22 kW
Top spindle (up to)	22 kW	30 kW
Left vertical spindle (up to)	18,5 kW	22 kW
Right vertical spindle (up to)	18,5 kW	22 kW
Chamfer motors (up to)	2 (4) x 1,85 kW	–
Feeding (up to)	15 kW	18,5 kW

Tools (pcs)	4V+4F	4V
Cutters knives [pcs]	4 – 6	4 – 8
Chamfer knives [pcs]	4	–

Tool diameters	4V+4F	4V
Horizontal spindle [mm]	160	160
Vertical spindle [mm]	140 – 220	160
Chamfer tool spindle ∅ [mm]	100 / 45° x 14	–

Chip removal (max)	4V+4F	4V
All spindles	15	15
Chamfers	12 / 45°	–

Extraction connection	4V+4F	4V
Horizontal spindle [mm]	160 – 250, 200 – 300	160 – 200, 200 – 220
Vertical spindle [mm]	2 x 160 – 200	2 x 160
Chamfer spindle [mm]	2 (4) x 80	N/A
Extraction air speed [m/sek]	30	30
