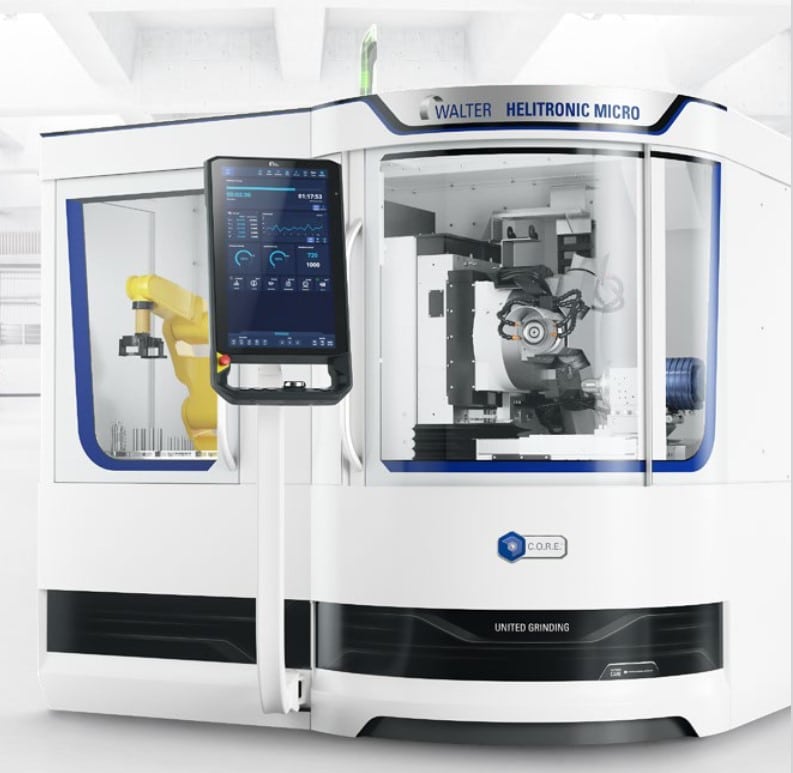

Grinding machine HELITRONIC MICRO
The tool grinding machine HELITRONIC MICRO with C.O.R.E.-Technology produces and sharpens rotationally symmetrical tools and production parts with smaller diameters. It grinds tools from a diameter of 0.1 mm in production and in re-sharpening operation from a diameter of 3 mm. The maximum diameter is 12.7 mm, the tool length up to 220 mm and the piece weight up to 12 kg.
Description
| Linear Axes | |
|---|---|
| Max. Travel X | 385 mm |
| Max. Travel Speed X | 30.000 mm/min |
| Max. Travel Y | 320 mm |
| Max. Travel Speed Y | 30.000 mm/min |
| Max. Travel Z | 320 mm |
| Max. Travel Speed Z | 30.000 mm/min |
| Swiveling Axes | |
|---|---|
| Swiveling Range A | ∞ ° |
| Swiveling Range B | +/-150 ° |
| Swiveling Range C | +200 /-20 ° |
| Spindle Drive | |
|---|---|
| Max. Spindle Power | 7 kW |
| Max. Number Of Revolutions | 10.500 /min |
| Max. Grinding Wheel Diameter | 150 mm |
