CLT & X-LAM (BSP) press line
Different technologies are used in the production of CLT (cross-laminated timber). Either each subsequent cross-layer is formed from separate lamellas that are pressed together in a press into a single CLT panel in one pressing pass (ideally both top pressure + side pressure), or pre-finished side-glued panels are produced, which are then calibrated and then pressed together in a special press (only top pressure) into a single CLT panel.

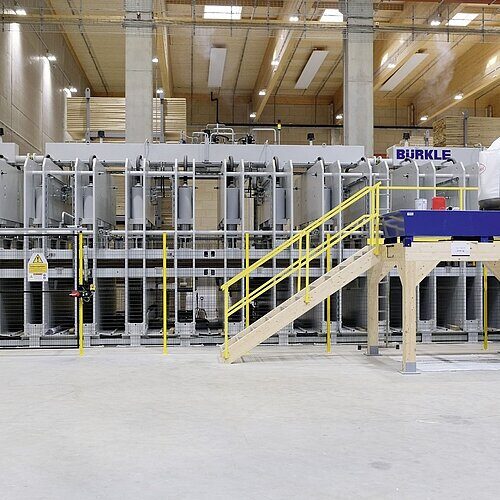

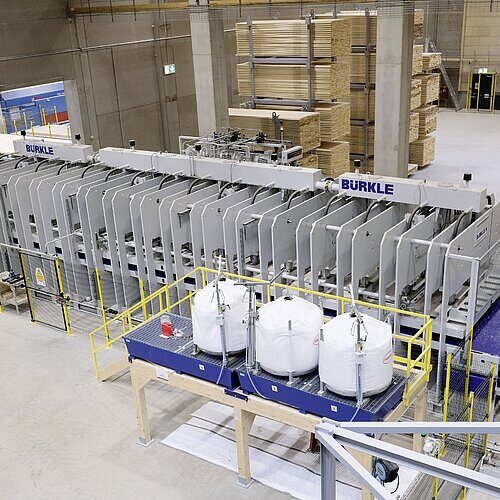

The Robert Bürkle CLT and BSP (Brettsperrholz)=X-LAM press is designed to glue together finished side-glued panels into a single CLT panel.
Maximum CLT panel size up to 3500 x 16000 (18200) mm. Product thickness 65-650mm
Â
Description
| Workpiece Cross sections |
|---|

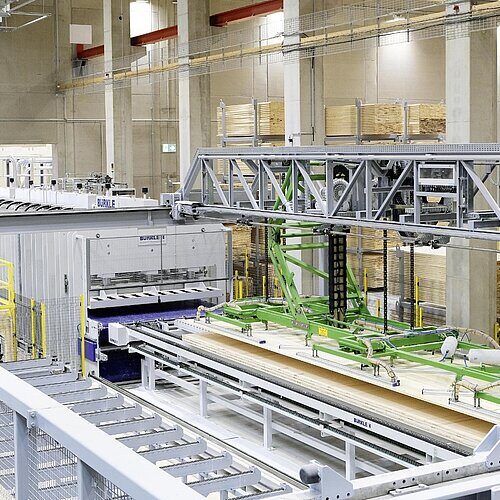

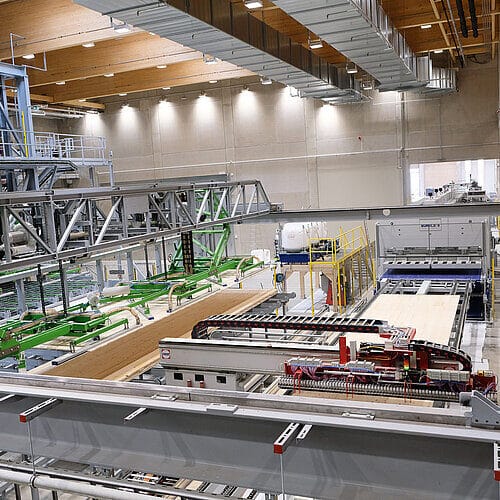

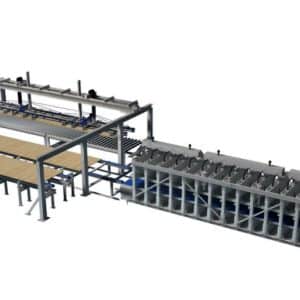

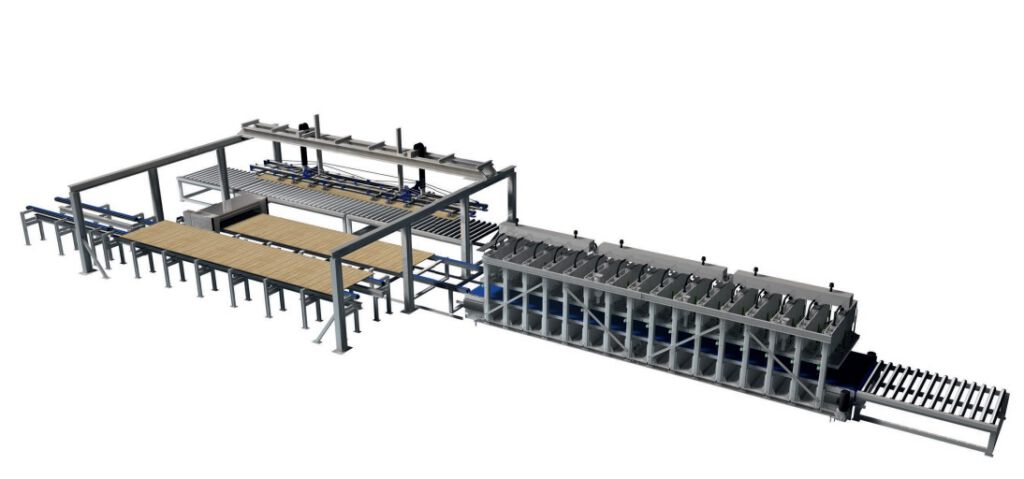

| – A complete line that includes loading, stacking, gluing, pressing and stacking. |
| – Laying area optionally for loose individual tiles or pre-glued layers. |
| – Production of longitudinal and transverse layers in layers or in stacks. |
| – Storage area with high-performance gantry device, thus enabling very short pressing times. |
| – Press dimensions adjusted to customer-specific workpiece dimensions, possible plate dimensions up to 3500 x 18200 mm. |

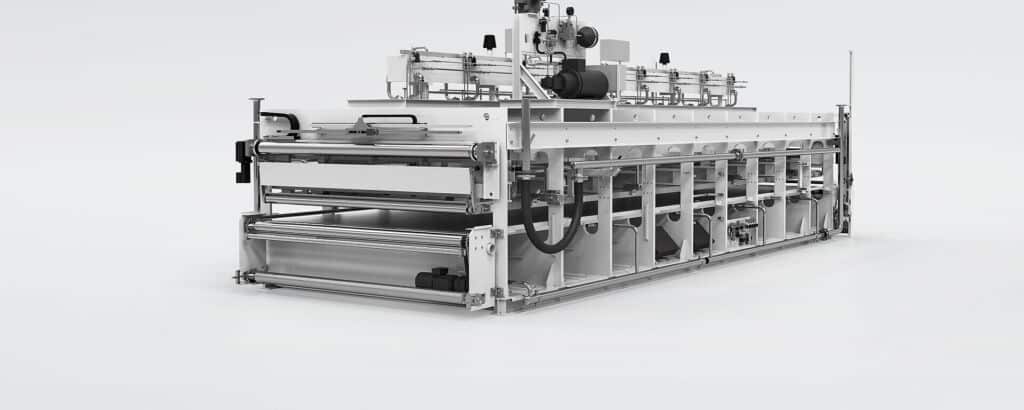

| – The press can be optionally equipped with a longitudinal and transverse pressure device. |
| – Operator-friendly control system for the entire line. |
| – Possible connection of the line to upstream and downstream production processes. |
| – Partially automated lines or fully automated high-performance lines. |
